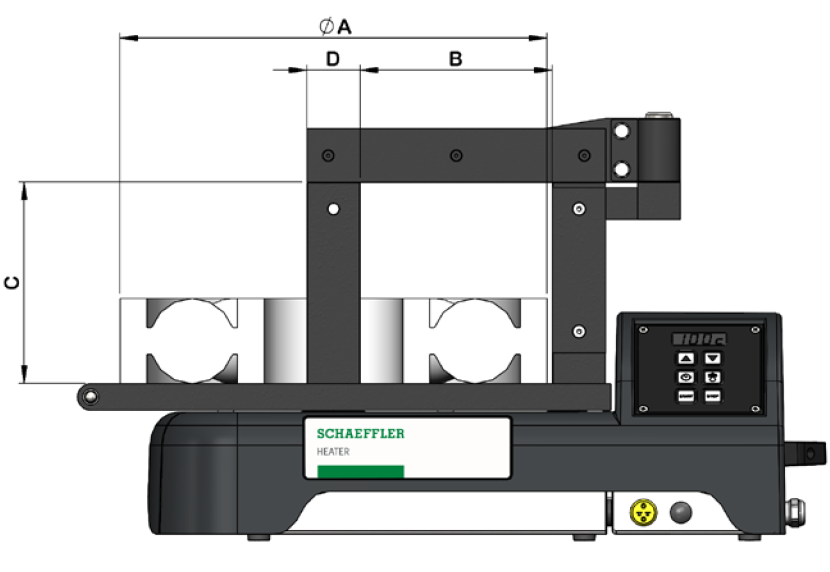

D
40x50
Display
Touch
C
130 mm
U
230 V
B
120 mm
I
13 A
P
3 kVA
F
50 ? 60 Hz
Temperature hold
+
Altura del HEATER
274 mm
Anchura del HEATER
226 mm
Automatic demagnetization, <2A/cm
+
Automatic power reduction
only in temp. and speed mode
Delta-T control
+
Device supports horizontal / lying heating of the workpiece
+
Device supports vertical / hanging heating of the workpiece
+
Heating time
0 ? 99 min
Log function
+
Longitud del HEATER
600 mm
Magnetic probe, quantity
2
Max. workpiece width, horizontal heating
125 mm
Max. workpiece width, vertical heating
115 mm
Min. inner diameter workpiece, horizontal heating
65 mm
Min. inner diameter workpiece, vertical heating: with included yoke
10 mm
Overheating protection
+
Swivel arm
?
Temperature and speed control
+
Temperature and time control
+
Temperature control
+
Time control
+
Yokes included, quantity
3
mb max
50 kg
