HXPC-50T

Name: HXPC-50T
Brand: Schaeffler
Availability: InStock

Consultar precio

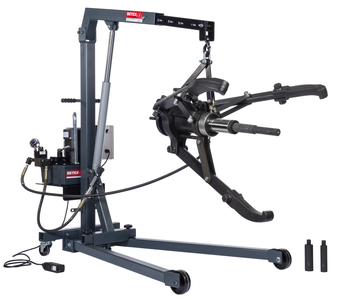

Mobile hydraulic heavy duty hook puller

MPN: HXPC-50T Marca: Schaeffler Categoría: Subcategoría: Familia: Subfamilia:

BETEX HXPC, 2/3-arm self-centering, max. pull-off force 490 kN, with crane

Dimensions [LxWxH] (mm) 1850 x 970 x 1550

FP 490 kN

Included in delivery Remote control, 2 adapter pieces (total length 310 mm), security blanket

Usability two- or three-arm puller (convertible)

Pmax 700 bar

Tmax 455 mm

wmax 860 mm

wmin 160 mm

U 230 V

Castors mobile frame on 2 swivel castors and 2 fixed castors

Current type AC power

Functional principle electric 2-stage hydraulic pump operates cylinder and crane, manual operation of the self-centering arms

F 50 ? 60 Hz

scm max 159 mm
