Active clock mode
yes, max. 4 measuring points
Communication
Bluetooth
Dimensions case (mm)
500 x 410 x 140
Display
8'' TFT, 1280 x 800 Px.

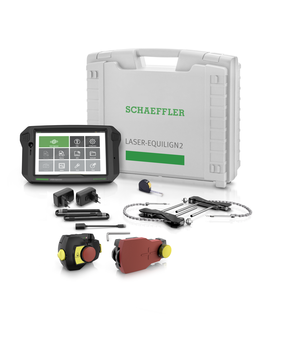

Included in delivery
1 pc. handheld tablet, 1 pc. charger with adapters, 1 pc. shaft bracket, 1 pc. laser/sensor, 1 pc. reflector with roof prisma, 1 pc. micro USB cable, 1 pc. USB C data cable, 1 pc. USB A USB C adapter cable, 1 pc. tape measure, 1 pc. hex wrench SW4, 1 pc. case
Laser technology
Single Laser
Measuring distance
0 ? 5 m

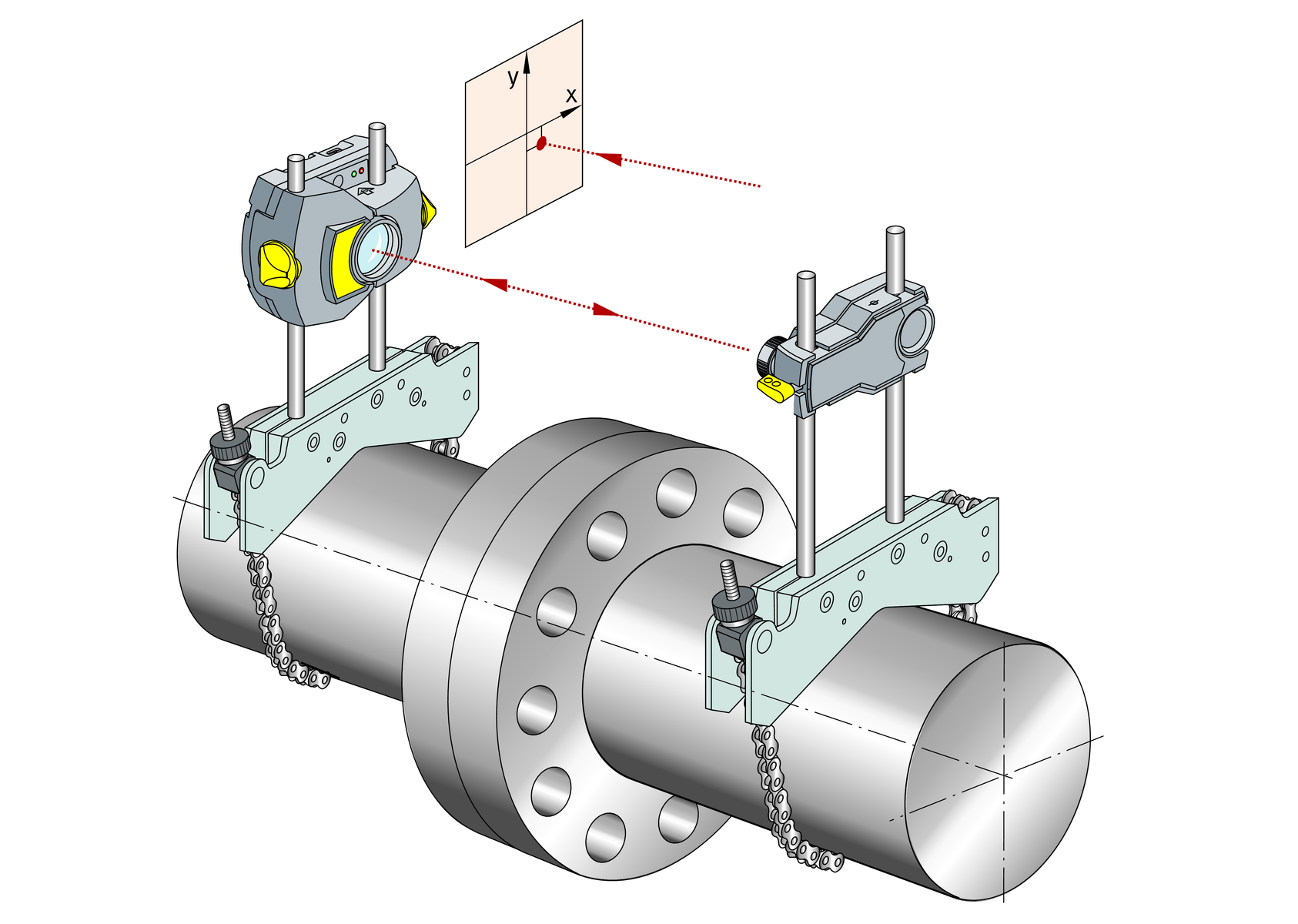

Measuring principle
Coaxial, reflected laser beam
Measuring range inclinometer
0? ? 360?
Operating temperature
-10?C ? +50?C
Operating time
up to 10 hours
Protection class handheld
IP 68
Protection class laser/sensor
IP 65
Safety class laser
Class 2 acc. to IEC 60825-1
System solution
Tablet-based, kiosked mode
Voltage supply
Li-Ion rechargeable battery
