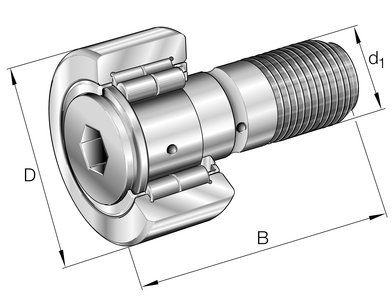

Imagen 1 de NUKR40
Imagen 2 de NUKR40
Imagen 3 de NUKR40
Imagen 1 de NUKR40-filter
Imagen 2 de NUKR40-filter
Imagen 3 de NUKR40-filter

NUKR40

Consultar precio

Rodillo de levas

MPN: NUKR40 Marca: Ina Categoría: Rodamientos, casquillos de fricción Subcategoría: Rodillos de apoyo y de levas Familia: Rodillos de apoyo con guía axial Subfamilia: NUKR
Stud type track rollers NUKR..-A, double row cylindrical roller bearings with particularly thick-walled outer ring, full complement cylindrical roller setand with a solid roller stud with fixing thread and a mounting aid, the outer ring is guided axially by the rolling elements, labyrinth seals on both sides,without eccentric collar
Engrasador a presión NIPA2X7,5
≈m 0,239 kg
B 58 mm
D 40 mm
d1 18 mm
Rmin 1 mm
D2 22 mm
B1 21,6 mm
b2 36,5 mm
C 20 mm
C0r w 24.800 N
C1 0,8 mm
Cr w 19.100 N
Cur w 3.250 N
F0r per 24.800 N
Fr per 12.900 N
G M18X1,5
IG 19 mm
MA 87 Nm
w 8 mm
D3 3 mm
nD G 5.500 1/min
B3 8 mm
