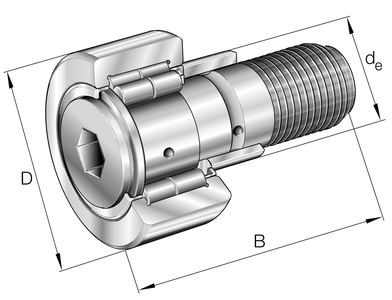

Imagen 1 de NUKRE35
Imagen 2 de NUKRE35
Imagen 3 de NUKRE35

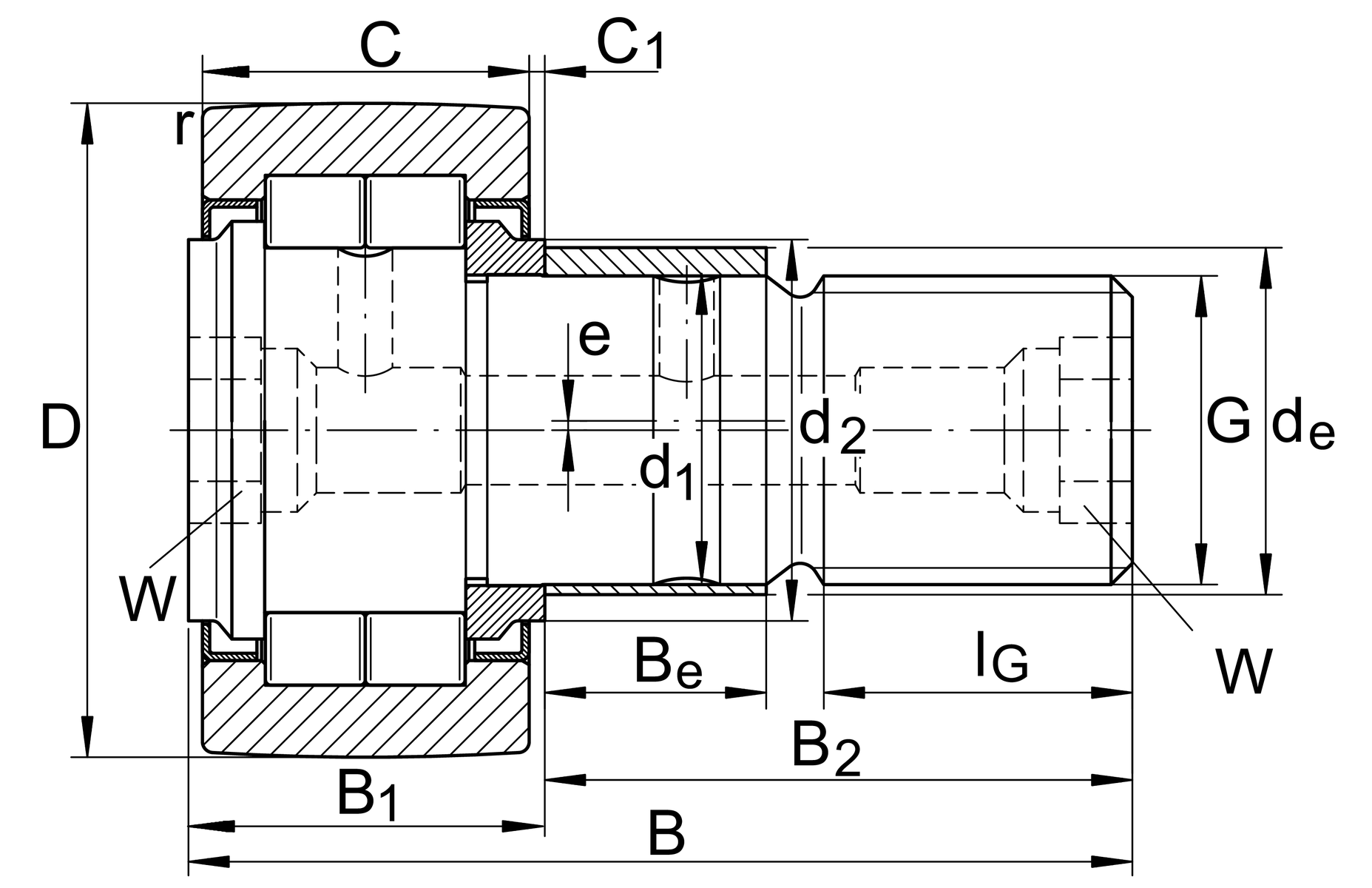

Imagen 1 de NUKRE35-filter
Imagen 2 de NUKRE35-filter
Imagen 3 de NUKRE35-filter

NUKRE35

Consultar precio

Rodillo de levas

MPN: NUKRE35 Marca: Ina Categoría: Rodamientos, casquillos de fricción Subcategoría: Rodillos de apoyo y de levas Familia: Rodillos de apoyo con guía axial Subfamilia: NUKRE
Stud type track rollers NUKRE..-A, double row cylindrical roller bearings with particularly thick-walled outer ring, full complement cylindrical roller set and with a solid roller stud with fixing thread and a mounting aid, the outer ring is guided axially by the rolling elements, labyrinth seals on both sides,with eccentric collar
Engrasador a presión NIPA2X7,5
≈m 0,2 kg
B 52 mm
D 35 mm
d1 16 mm
Rmin 0,6 mm
D2 27,6 mm
B1 22,6 mm
b2 29,5 mm
C 18 mm
C0r w 18.600 N
C1 3,8 mm
Cr w 15.600 N
Cur w 2.480 N
F0r per 16.800 N
Fr per 8.500 N
G M16X1,5
IG 17 mm
MA 58 Nm
w 8 mm
E 1 mm
nD G 6.500 1/min
Be 12 mm
de 20 mm
