PWTR4090-2RS-XL

Consultar precio

Rodillo de apoyo

MPN: PWTR4090-2RS-XL Marca: Ina Categoría: Linear Motion Subcategoría: Guías lineales con rodillos-guía Familia: Rodillos de apoyo sin guía axial Subfamilia: PWTR

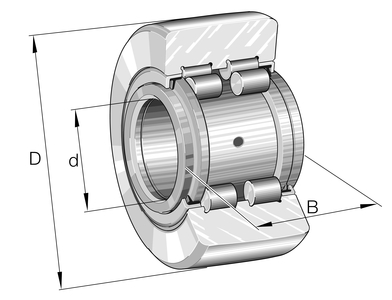

Yoke type track rollers PWTR..-2RS-XL, double row cylindrical roller bearings with particularly thick-walled outer ring, with a central rib, full complement cylindrical roller set and an inner ring, the outer ring is guided axially by the central rib and rolling elements, protected lip seal on both sides, X-life design
≈m 1,096 kg
frecuencias_basicas https://bearinx.schaeffler.com/catalogue/api/v1/CatalogBearing/product/basicfrequencies/pdf/3b41176fed184b379b33791854b3c498/Es_es/comma

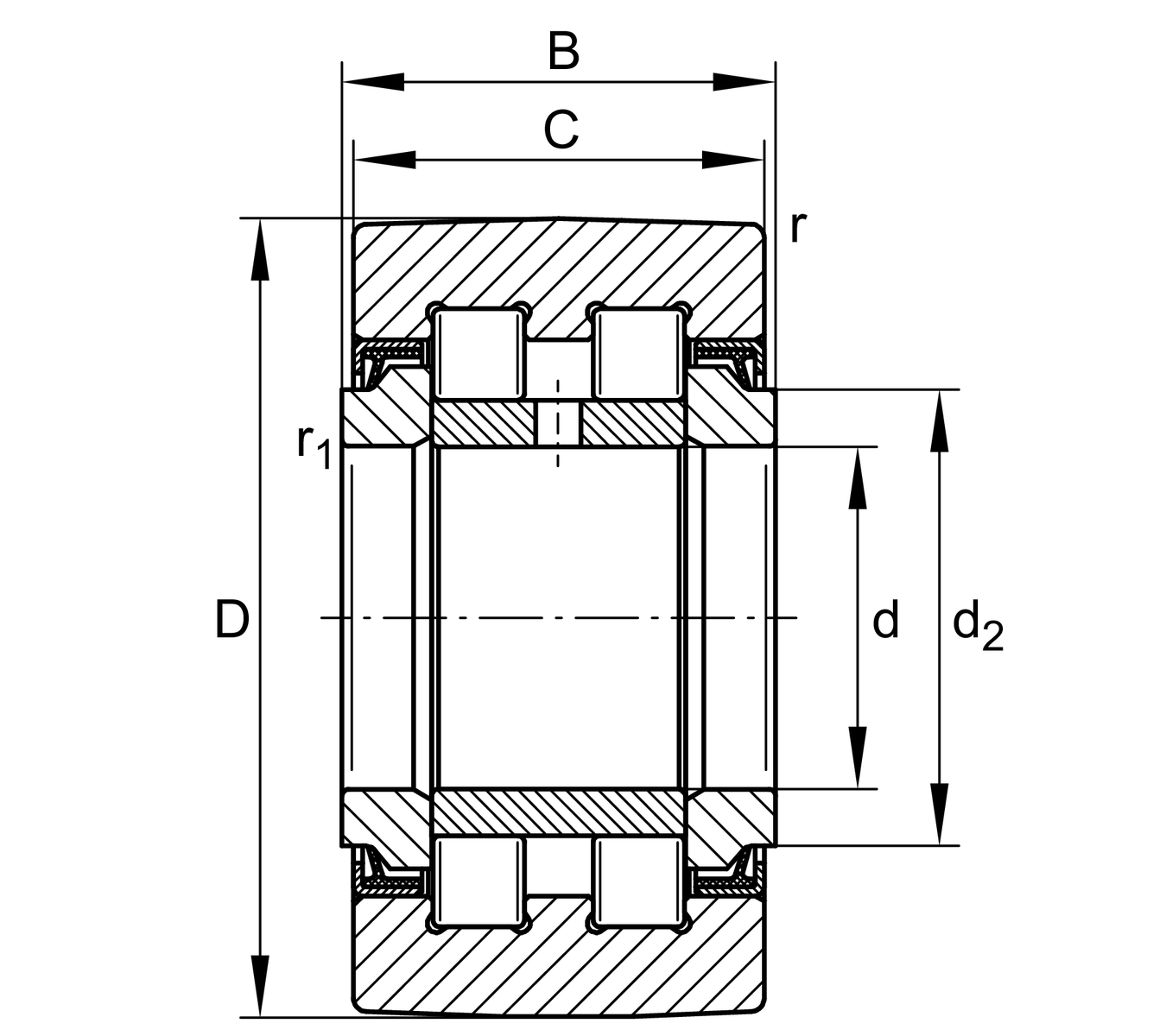

B 32 mm
D 40 mm
Rmin 1,1 mm
D2 50,5 mm
C 30 mm
C0r w 74.000 N
Cr w 53.000 N
Cur w 9.900 N
F0r per 74.000 N
Fr per 66.000 N
nD G 1.500 1/min
r1 min 0,6 mm
