TOOL-RAILWAY-AGGREGATE-2

Consultar precio

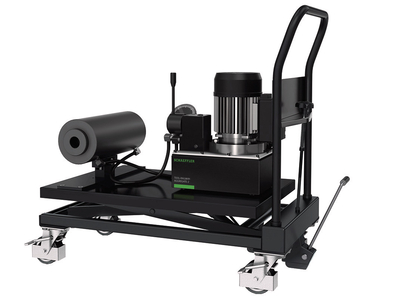

Mobile hydraulic device

MPN: TOOL-RAILWAY-AGGREGATE-2 Marca: Schaeffler Categoría: Digital and Service Solutions Subcategoría: Herramientas hidráulicas Familia: Hydraulic Devices for Axlebox Bearing Mounting on Rail Vehicles Subfamilia: TOOL-RAILWAY-AGGREGATE
for mounting/dismounting of tapered or cylindrical roller bearing units in wheelset bearings of rail vehicles, standard version
Dimensions [LxWxH] (mm) 1050 x 550 x 900

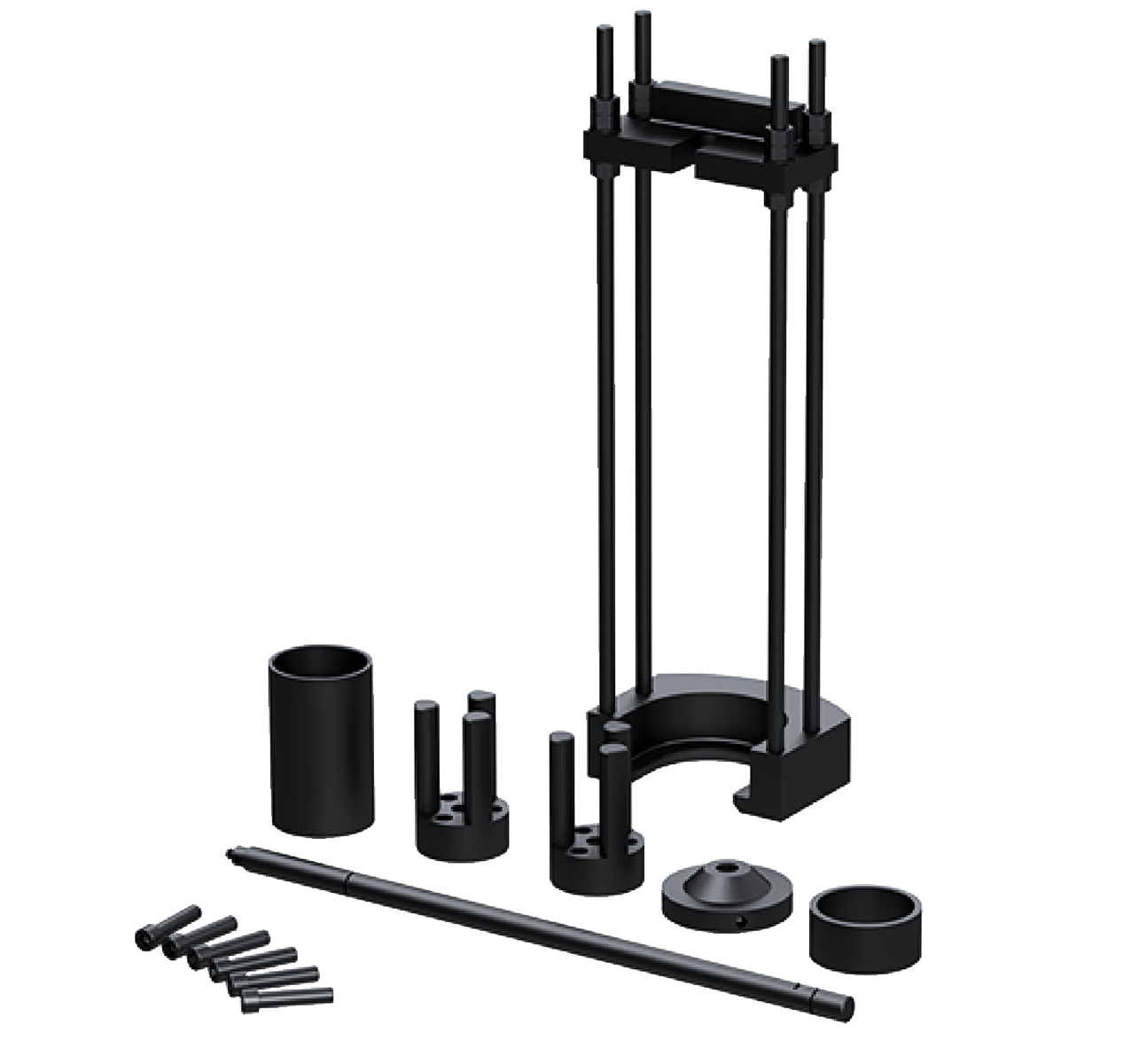

Usability only in conjunction with bearing/application-specific tool set TOOL-RAILWAY-AXLE... (not included in delivery, separate on request)
Pmax 700 bar
U 400 V
P 1,1 kW
Castors 4 swivel castors with brake function
Current type Three-phase AC
Functional principle electrically driven hydraulic unit, double action hollow piston cylinder
F 50 ? 60 Hz
Availability Product is manufactured to order. Request with specification of the application case to customer service.
Fc max 692 kN
Height adjustment hydraulic with foot pedal, manually operated lowering valve
sc max 230 mm
