ACC-SET-HP63-HSP63

Name: ACC-SET-HP63-HSP63
Brand: Schaeffler
Availability: InStock

Consultar precio

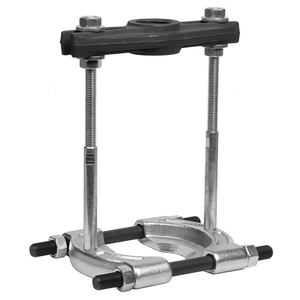

Bearing splitter set

MPN: ACC-SET-HP63-HSP63 Marca: Schaeffler Categoría: Digital and Service Solutions Subcategoría: Herramientas mecánicas Familia: Bearing Puller Subfamilia: Puller Plate Sets

BETEX Puller for gentle dismounting of complete bearings, bearing inner rings and other components so that the pulling force is not transmitted via moving parts. The part to be dismounted must be well accessible radial and axial.

Scope of delivery 1 puller bridge, 2 connection rods, 1 set puller plates, carrying case

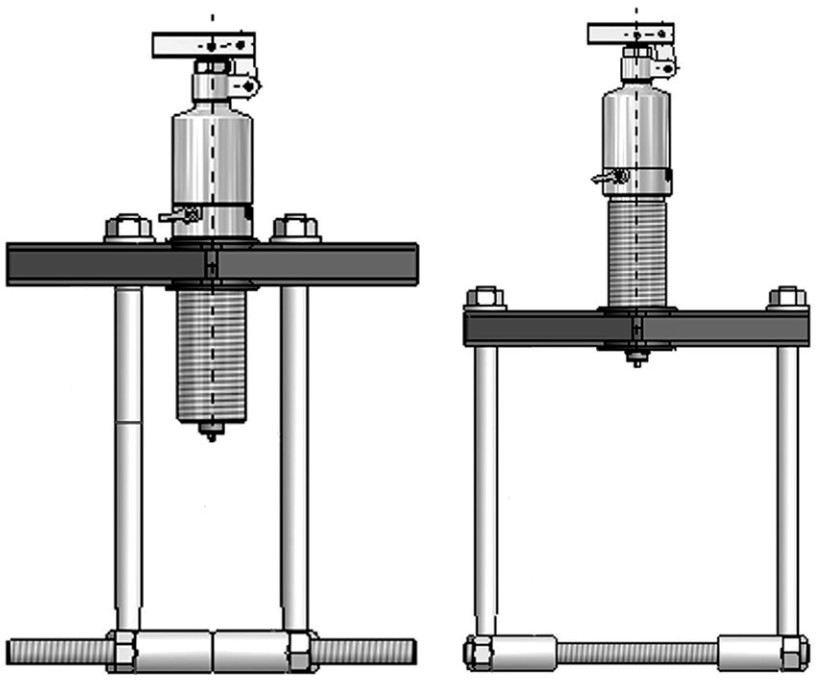

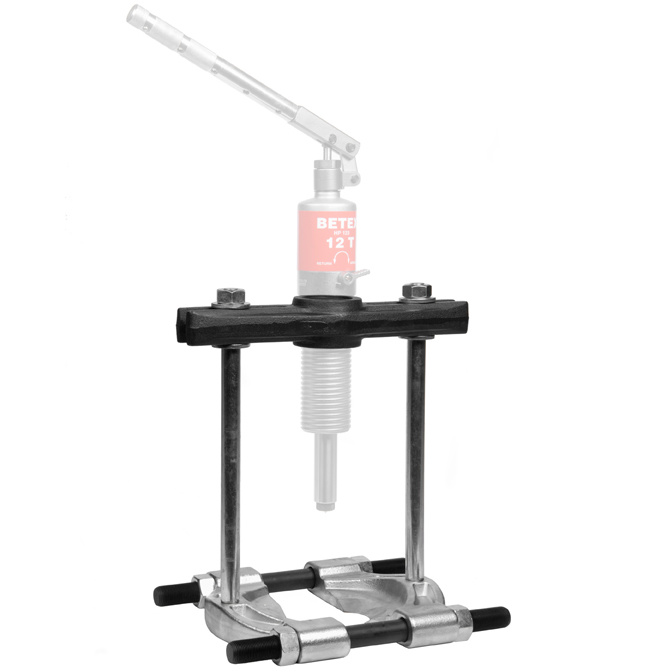

Usability with the pump/cylinder unit of an HP/HSP puller

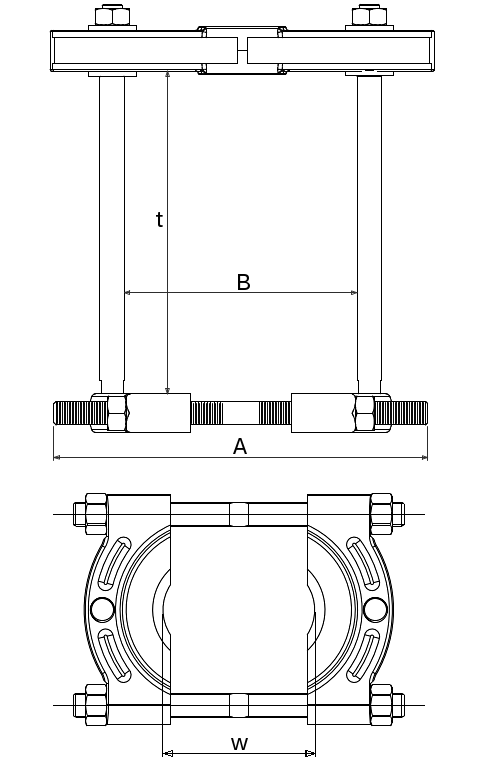

Tmax 255 mm

wmax 150 mm

wmin 28 mm

Bmax 220 mm

Fz max 55 kN

A 260 mm

Bmin 110 mm
