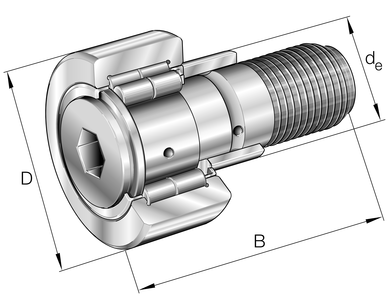

Imagen 1 de NUKRE52

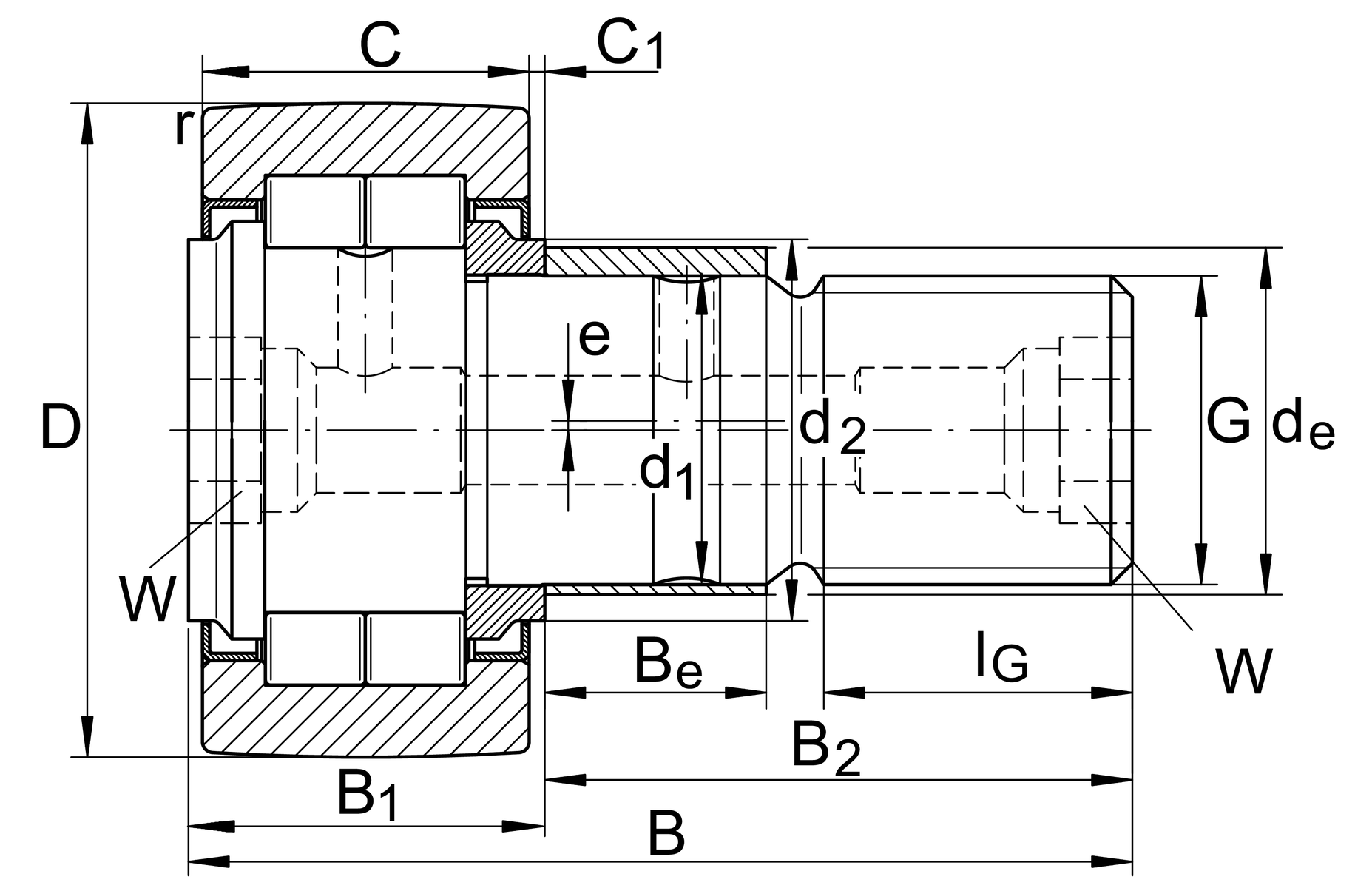

Imagen 2 de NUKRE52
Imagen 3 de NUKRE52
Imagen 1 de NUKRE52-filter
Imagen 2 de NUKRE52-filter
Imagen 3 de NUKRE52-filter

NUKRE52

Consultar precio

Rodillo de levas

MPN: NUKRE52 Marca: Ina Categoría: Rodamientos, casquillos de fricción Subcategoría: Rodillos de apoyo y de levas Familia: Rodillos de apoyo con guía axial Subfamilia: NUKRE
Stud type track rollers NUKRE..-A, double row cylindrical roller bearings with particularly thick-walled outer ring, full complement cylindrical roller set and with a solid roller stud with fixing thread and a mounting aid, the outer ring is guided axially by the rolling elements, labyrinth seals on both sides,with eccentric collar
Engrasador a presión NIPA2X7,5
≈m 0,487 kg
B 66 mm
D 52 mm
d1 20 mm
Rmin 1 mm
D2 31 mm
B1 25,6 mm
b2 40,5 mm
C 24 mm
C0r w 41.500 N
C1 0,8 mm
Cr w 29.000 N
Cur w 5.400 N
F0r per 34.000 N
Fr per 17.100 N
G M20X1,5
IG 21 mm
MA 120 Nm
w 10 mm
E 1 mm
nD G 4.200 1/min
Be 18 mm
de 24 mm
