UFB4710

Consultar precio

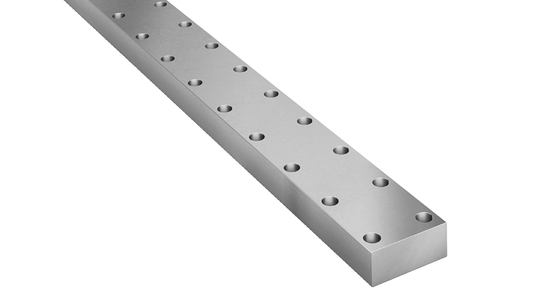

Guideways with one raceway, for screw mounting

MPN: UFB4710 Marca: Ina Categoría: Linear Motion Subcategoría: Sistemas de guiado lineal Familia: Patines con recirculación de rodillos Subfamilia: Carriles-guía

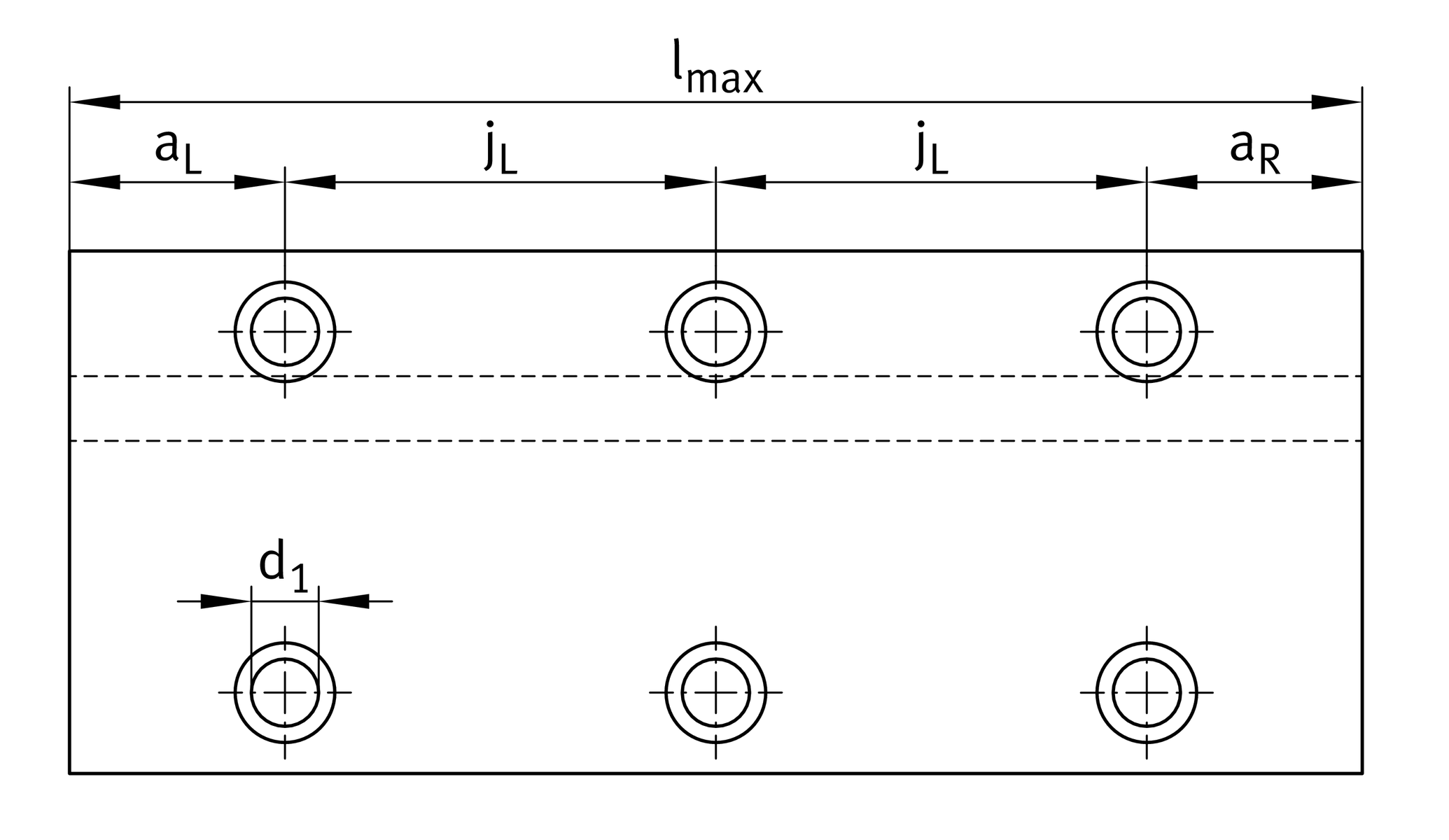

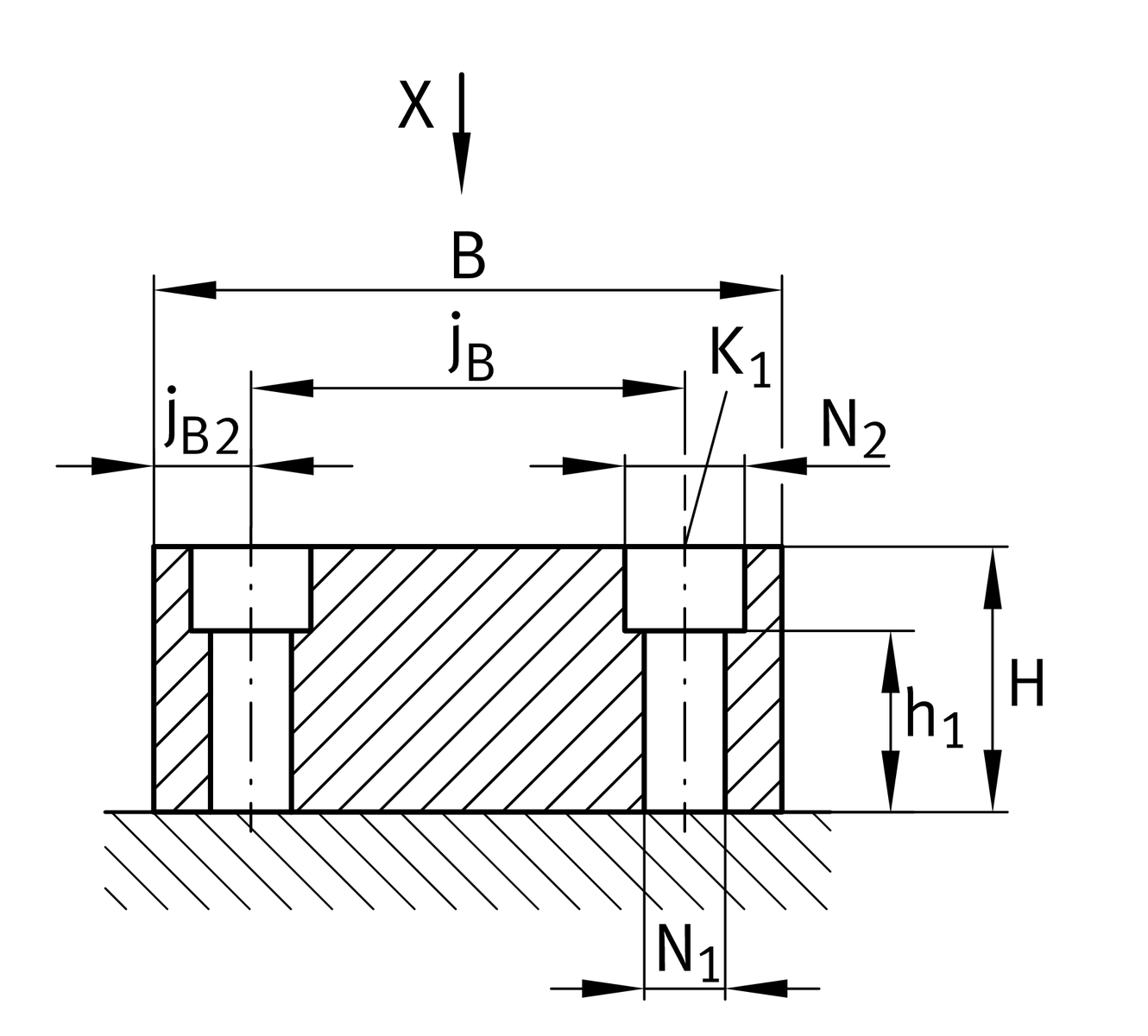

Carril-guía
B 47 mm
H 10 mm
N2 8,5 mm
d1 5,3 mm
JL 80 mm
H1 3,5 mm
aL max 50 mm
aL min 10 mm
aR max 50 mm
aR min 10 mm
lmax 2.000 mm
jB 36 mm
Tol B - 0,1 mm
Tol H - 0,1 mm
JB2 5,5 mm
Adecuado para rodamientos lineales de rodillos 2 RUS19069, RUS19105, RUS26086, RUS26102, RUS26126, RUSV30069-KS, RUSV30105-KS, RUSV42086-KS, RUSV42102-KS, RUSV42126-KS, PR14044, PR14061
1802269 Descargar
