TRI-SECTION-PLATE-340

Name: TRI-SECTION-PLATE-340
Brand: Schaeffler
Availability: InStock

Consultar precio

Tri-section extraction plate, Removal tool, mechanical

MPN: TRI-SECTION-PLATE-340 Marca: Schaeffler Categoría: Digital and Service Solutions Subcategoría: Herramientas mecánicas Familia: Bearing Puller Subfamilia: Tri-Section Plates

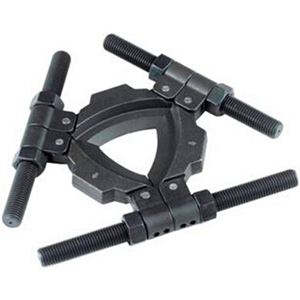

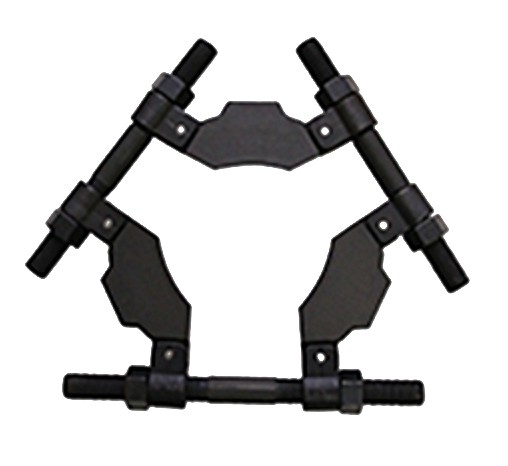

BETEX Tri-Section-Plate for removing complete bearings or tight fitted inner rings; with good radial and axial access, it offers the possibility of grabbing the inner ring so that the pulling force is not transmitted via moving parts and damage to the bearing is avoided

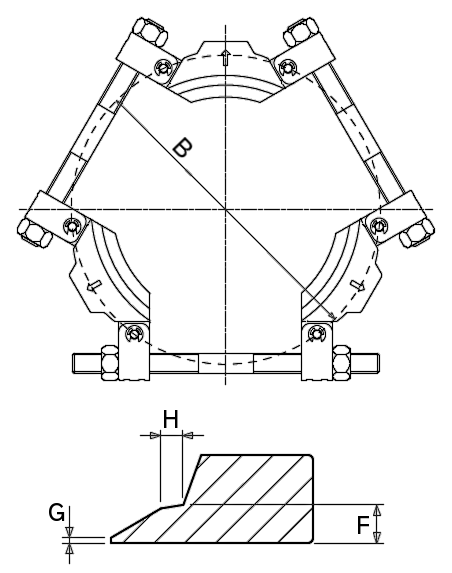

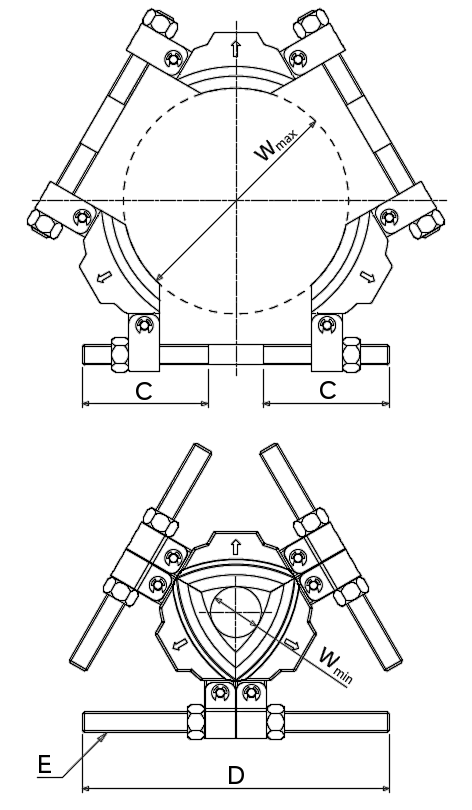

D 430 mm

G 2 mm

Usability in combination with puller: HP/HSP/HXP 83, 123, 203, HPP 123

wmax 340 mm

wmin 90 mm

Bmax 460 mm

C 175 mm

E 1??-12UNF

F 14 mm

Fz max 190 kN

H 8 mm
